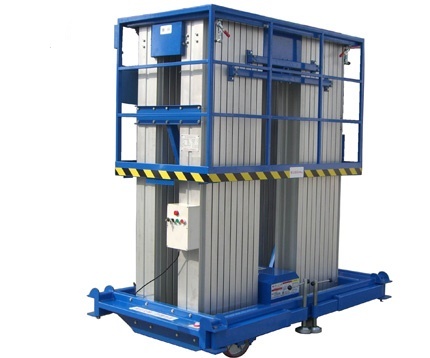

18m Aluminum hydraulic lifts
18m Aluminum hydraulic lifts
Aluminum hydrolic lift is vertical mast lift platform type. Enjoyed by compact size, light weight and good appearance.
Overall width is 1300mm, which enable lift can enter into normal elevator’s door or hall.
User can move the mast lift into hotel, museum, and theatre for aerial cleaning, inspection or maintain.
Non-trace polyurethane wheels adopt keep ground floor clean, no scratch.
1. Travel switch: The lifter will stop automatically when touch it.
2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely.
3. Outrigger: guarantee stability of whole machine when work.
4. Hydraulic power unit: Lisheng brand, long time service life.
5. Aluminum alloy profile: make whole machine with light weight.
6. Double chains: Keep safe.
7. Locking key switch on control distributor
8. Auxiliary platform lowered device: User can push this button to make lift fall down when meet an emergency.
9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor.
Aluminum hydrolic lift is vertical mast lift platform type. Enjoyed by compact size, light weight and good appearance.
Overall width is 1300mm, which enable lift can enter into normal elevator’s door or hall.
User can move the mast lift into hotel, museum, and theatre for aerial cleaning, inspection or maintain.
Non-trace polyurethane wheels adopt keep ground floor clean, no scratch.
|
Model |
SJL0.2-18 (four masts) |
|
Capacity |
200kg |
|
Max. Occupants |
2 |
|
Max. working height |
20.00m |
|
Platform height |
18.00m |
|
Platform size |
1.40x1.00m |
|
Overall length |
3.20m |
|
Overall width |
1.50m |
|
Overall height |
3.20m |
|
Lifting motor |
2.2kw |
|
Weight |
1980kg |
|
Overall size |
3.20x1.50x3.20m |
2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely.
3. Outrigger: guarantee stability of whole machine when work.
4. Hydraulic power unit: Lisheng brand, long time service life.
5. Aluminum alloy profile: make whole machine with light weight.
6. Double chains: Keep safe.
7. Locking key switch on control distributor
8. Auxiliary platform lowered device: User can push this button to make lift fall down when meet an emergency.
9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor.
