home elevator,wheelchair elevator,vertical wheelchair lifts



Details

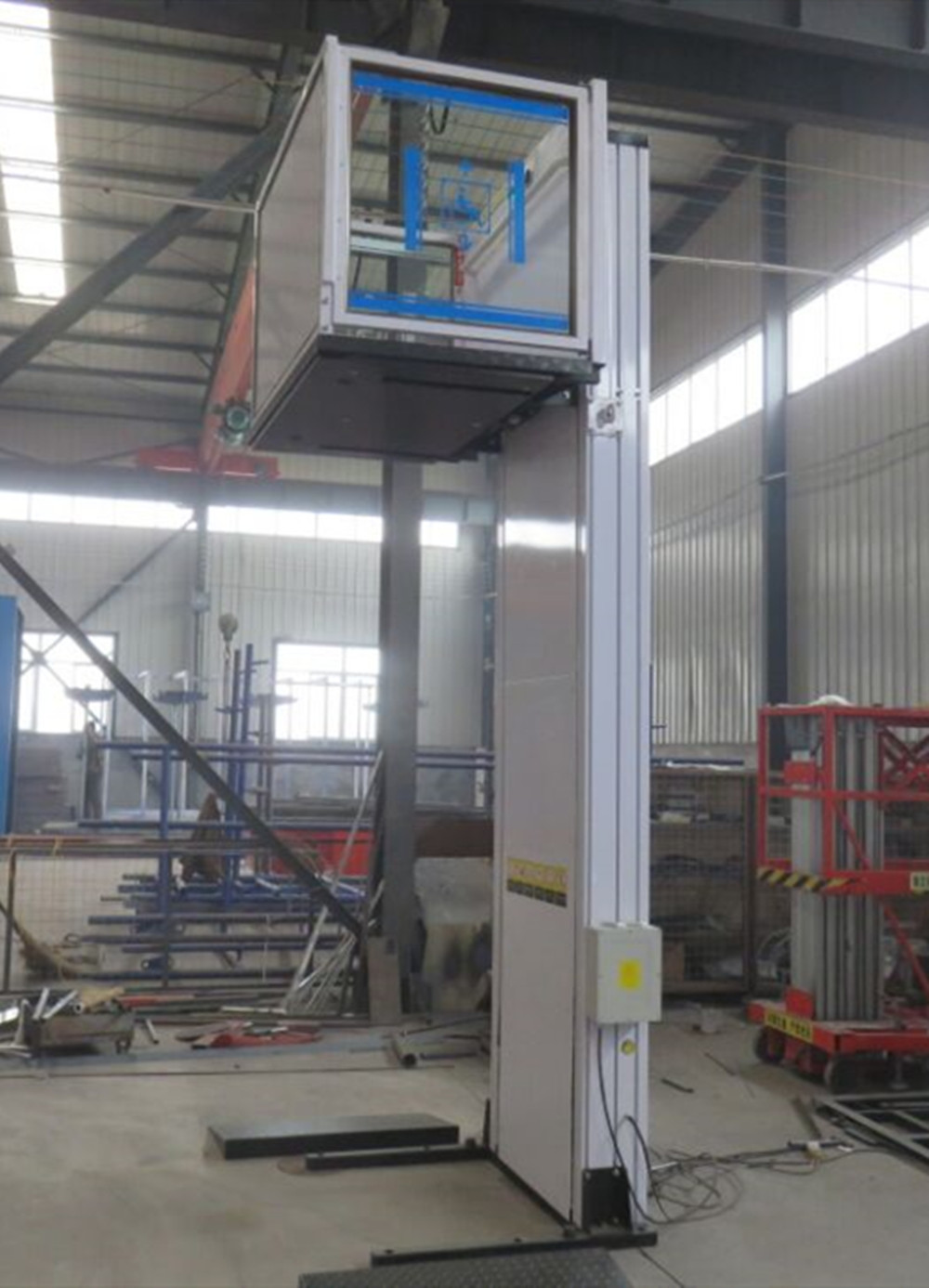

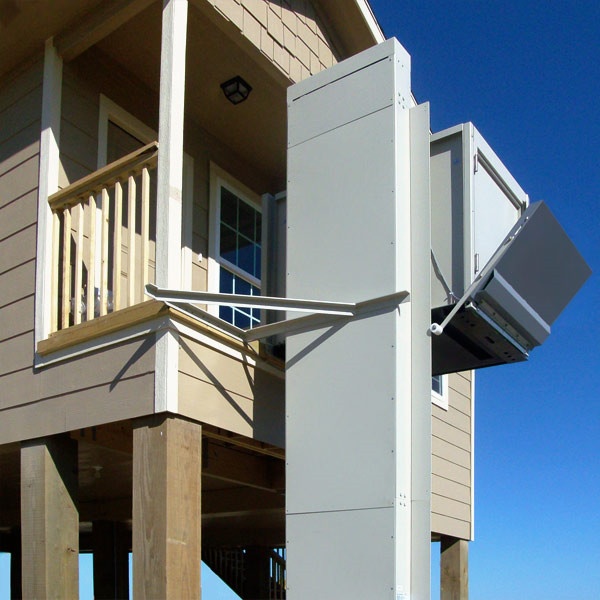

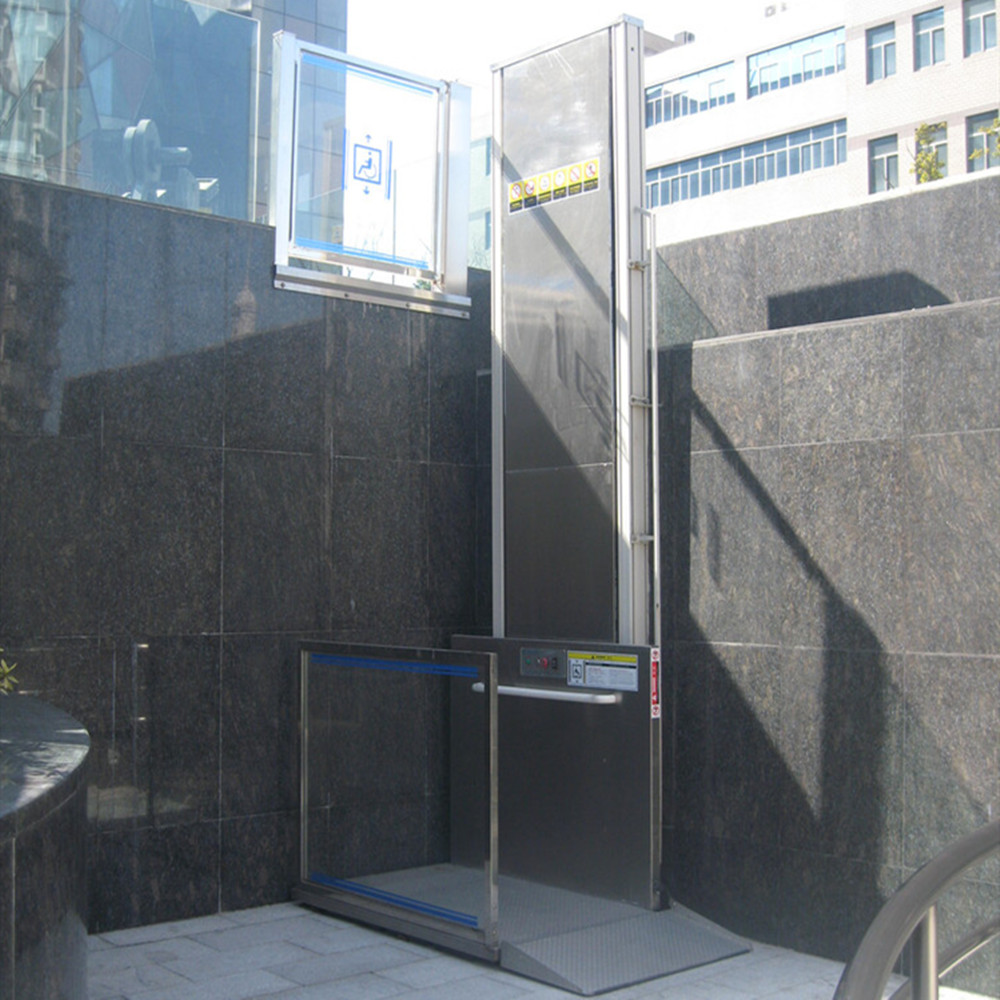

 home elevator for disabled people

MaxPlatform Height

8000mm

MiPlatform height

80mm

Configuration

Open through or front and side entrances

Speed

60mm/s

Load capacity

250KG~350KG

Control voltage

24V/DC

Power Output

1.5KW

Power Input

220V/50HZ/25A (or customized for local power supply)

Drive System

Hydraulic

Control Mode

Inching Switch or Automatic

Drive Control

Self-resetting system

Overload

Protection Over current relay

Material of Platform

Checkered slip-proof aluminum alloy

Painting

Plastic electrostatic spraying

Guard panel & drivecabinet (framework)

Aluminum Alloy / 304 stainless steel



Operation Panel

Polished aluminum Alloy

Safety Wane WorkingRange

75°

Working Condition

Both indoors and outdoors

Working temperature

From -10°~60°C

Installation



Non-pit installation, directly fixed to concrete floor (the concrete

floor below the platform shall not be lower than the ground)

Control Device



Calling box (installed on the wall nearby) and remote

controller(Extra optional)

Emergency Stop



The lifting and lowering process can be stopped immediately

by pressing the emergency button.

Safety device

Safety Interlock

Lock the platform when it is out of control



SafetySensor

The operation must be stopped immediately thesafety edge meets obstacles during operation.



Emergencylowering

The platform can be lowered by opening

hydraulic valve manually or rolling screw rod.



Auto-flap

Turn up after lifting


 Emergencylowering


 The platform can be lowered by opening

 hydraulic valve manually or rolling screw rod.



 Auto-flap

Turn up after lifting
