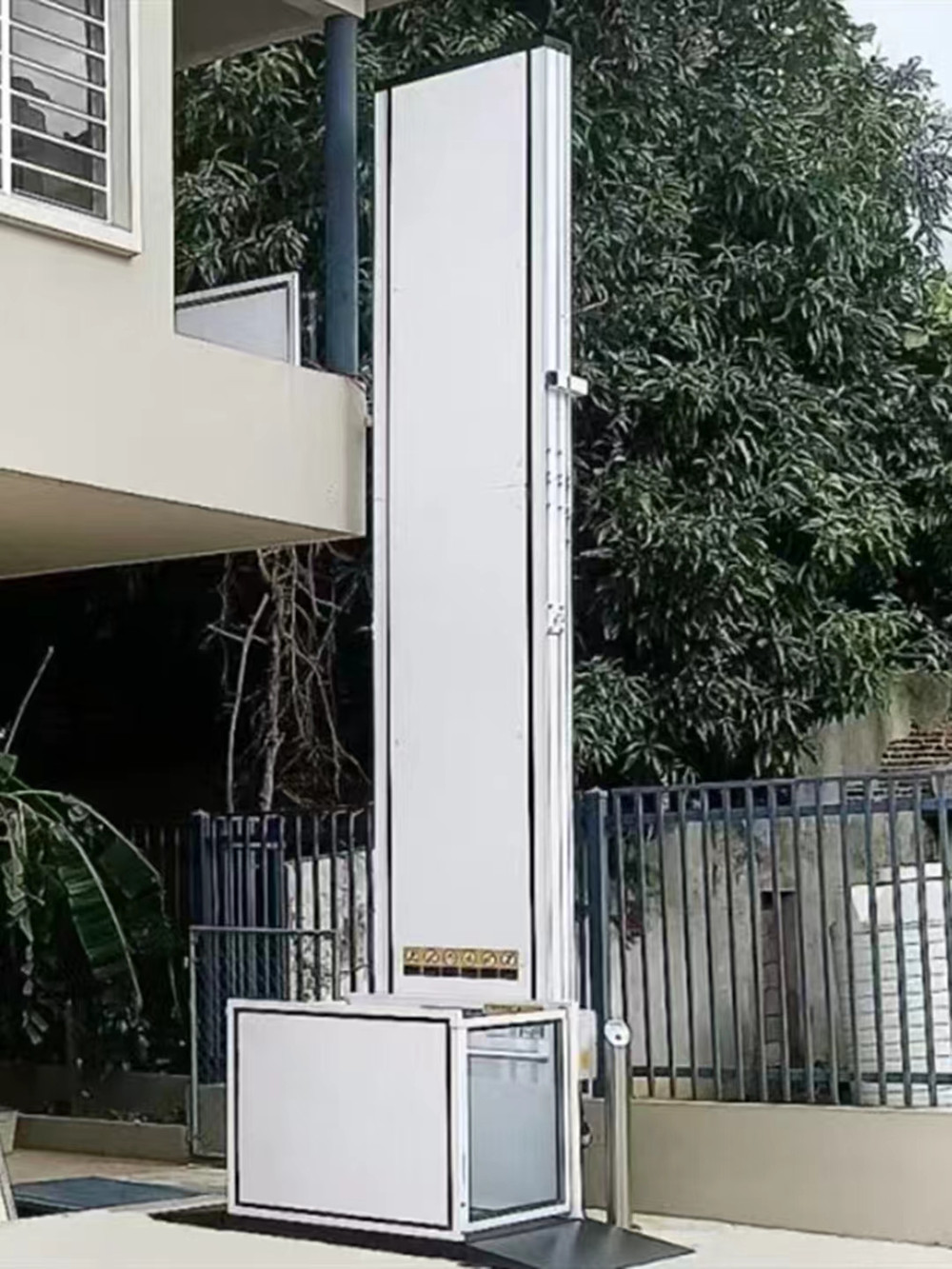

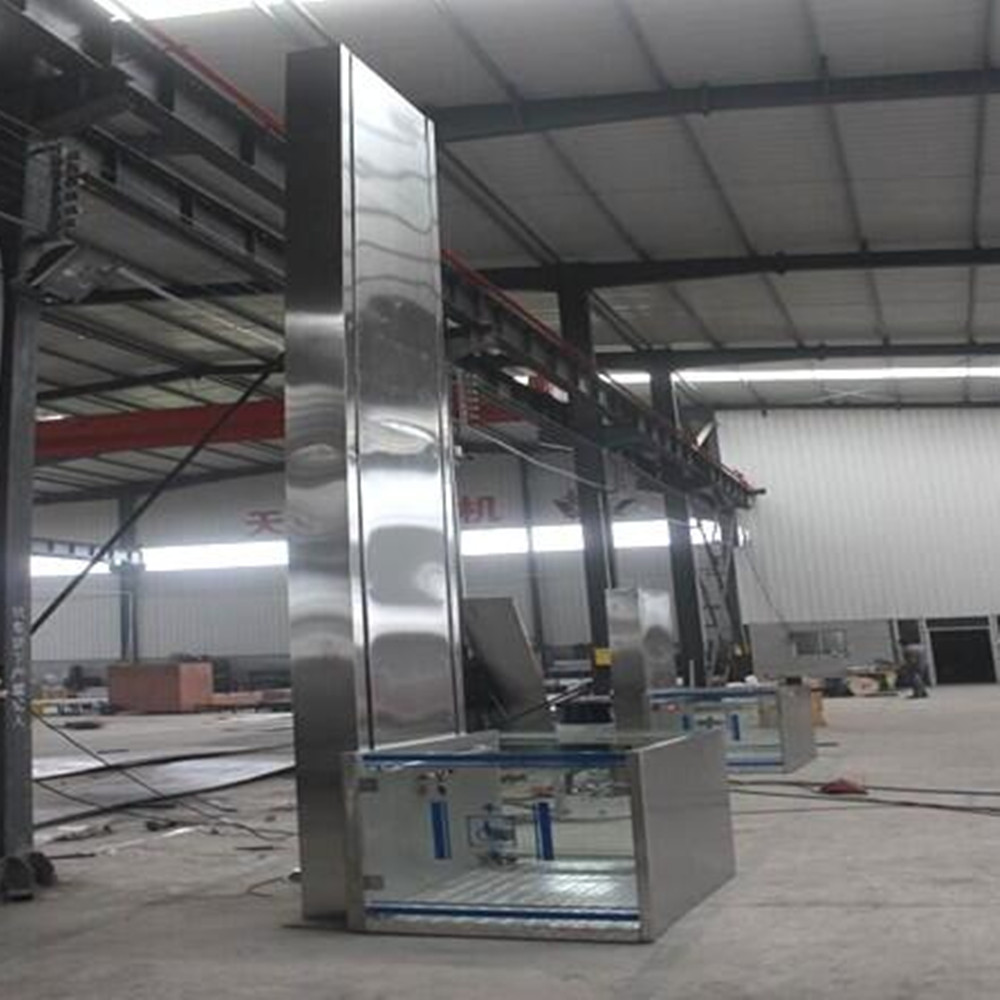

disabled vertical platform lifts
MaxPlatform Height |
8000mm |
|
Min Platform height |
80mm |
|
Configuration |
Open through or front and side entrances |
|
Speed |
60mm/s |
|
Load capacity |
250KG~350KG |
|
Control voltage |
24V/DC |
|
Power Output |
1.5KW |
|
Power Input |
220V/50HZ/25A (or customized for local power supply) |
|
Drive System |
Hydraulic |
|
Control Mode |
Inching Switch or Automatic |
|
Drive Control |
Self-resetting system |
|
Overload |
Protection Over current relay |
|
Material of Platform |
Checkered slip-proof aluminum alloy |
|
Painting |
Plastic electrostatic spraying |
|
Guard panel & drivecabinet (framework) |
Aluminum Alloy / 304 stainless steel
|
|
Operation Panel |
Polished aluminum Alloy |
|
Safety Wane WorkingRange |
75° |
|
Working Condition |
Both indoors and outdoors |
|
Working temperature |
From -10°~60°C |
|
Installation
|
Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
|
Control Device
|
Calling box (installed on the wall nearby) and remote controller(Extra optional) |
|
Emergency Stop
|
The lifting and lowering process can be stopped immediately by pressing the emergency button. |
|
Safety device |
Safety Interlock |
Lock the platform when it is out of control |
SafetySensor |
The operation must be stopped immediately thesafety edge meets obstacles during operation. |
|
Emergencylowering |
The platform can be lowered by opening hydraulic valve manually or rolling screw rod. |
|
Auto-flap |
Turn up after lifting |
