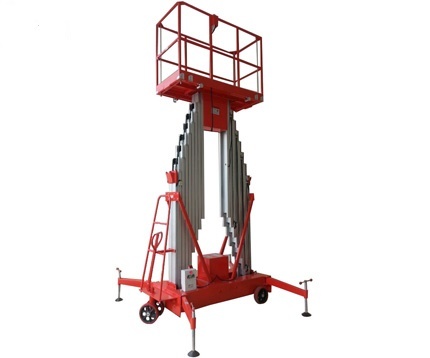

12m vertical mast lift
12m vertical mast lift
12m ertical mast lift is enjoyable by its light weight, small size and flexible movement.
With 200kg capacity, 1500*600mm platform size.
Overall width of whole machine is 1.0m, which makes this vertical lifts go through narrow opening easily.
AC power, battery or diesel can for customer's selection.
Lifting height, load capacity and platform size can be manufactured accordingly.
1. Travel switch: The lifter will stop automatically when touch it.
2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely.
3. Outrigger: guarantee stability of whole machine when work.
4. Hydraulic power unit: Lisheng brand, long time service life.
5. Aluminum alloy profile: make whole machine with light weight.
6. Double chains: Keep safe.
7. Locking key switch on control distributor
8. Auxiliary platform lowered device: User can push this button to make lift fall down when meet an emergency.
9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor.
With 200kg capacity, 1500*600mm platform size.
Overall width of whole machine is 1.0m, which makes this vertical lifts go through narrow opening easily.
AC power, battery or diesel can for customer's selection.
Lifting height, load capacity and platform size can be manufactured accordingly.
|
Model |
SJL0.2-12 |
|
Capacity |
200kg |
|
Max. Occupants |
2 |
|
Max. working height |
14.00m |
|
Platform height |
12.00m |
|
Platform size |
1.65x0.60m |
|
Overall length |
2.00m |
|
Overall width |
0.89m |
|
Overall height |
2.08m |
|
Lifting motor |
1.5kw |
|
Weight |
850kg |
|
Overall size |
2.00x0.89x2.08m |
1. Travel switch: The lifter will stop automatically when touch it.
2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely.
3. Outrigger: guarantee stability of whole machine when work.
4. Hydraulic power unit: Lisheng brand, long time service life.
5. Aluminum alloy profile: make whole machine with light weight.
6. Double chains: Keep safe.
7. Locking key switch on control distributor
8. Auxiliary platform lowered device: User can push this button to make lift fall down when meet an emergency.
9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor.
