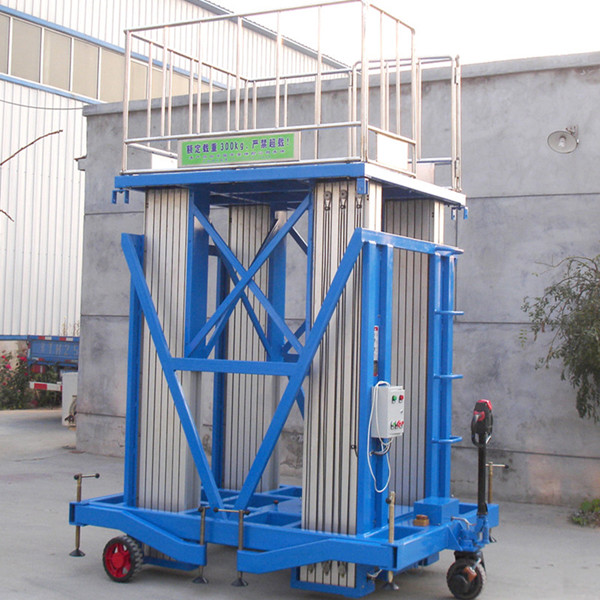

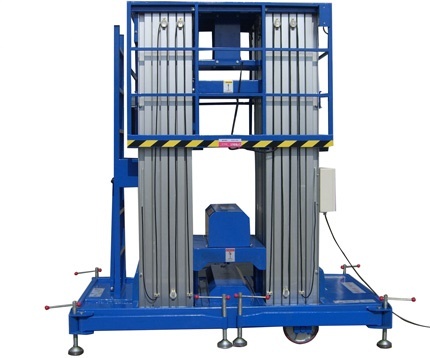

20m mobile portable work platforms
20m mobile portable work platforms
Aluminum mobile portable work platforms are the lightest work platform at the height of 20m.
Aluminum alloy material used reduces much weight of whole machine.
For better movement, the mobile work platform can be added battery to assist walking.
Safety guardrails with handle lock, and can be folded to decrease height.
For guarantee safety and keep stability, portable support legs must be spread before work.
1. Travel switch: The lifter will stop automatically when touch it.
2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely.
3. Outrigger: guarantee stability of whole machine when work.
4. Hydraulic power unit: Lisheng brand, long time service life.
5. Aluminum alloy profile: make whole machine with light weight.
6. Double chains: Keep safe.
7. Locking key switch on control distributor
8. Auxiliary platform lowered device: User can push this button to make lift fall down when meet an emergency.
9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor.
Aluminum mobile portable work platforms are the lightest work platform at the height of 20m.
Aluminum alloy material used reduces much weight of whole machine.
For better movement, the mobile work platform can be added battery to assist walking.
Safety guardrails with handle lock, and can be folded to decrease height.
For guarantee safety and keep stability, portable support legs must be spread before work.
|
Model |
SJL0.2-20 (four masts) |
|
Capacity |
200kg |
|
Max. Occupants |
2 |
|
Max. working height |
22.00m |
|
Platform height |
20.00m |
|
Platform size |
1.50x1.10m |
|
Overall length |
3.50m |
|
Overall width |
1.50m |
|
Overall height |
3.50m |
|
Lifting motor |
2.2kw |
|
Weight |
2200kg |
|
Overall size |
3.50x1.50x3.50m |
1. Travel switch: The lifter will stop automatically when touch it.
2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely.
3. Outrigger: guarantee stability of whole machine when work.
4. Hydraulic power unit: Lisheng brand, long time service life.
5. Aluminum alloy profile: make whole machine with light weight.
6. Double chains: Keep safe.
7. Locking key switch on control distributor
8. Auxiliary platform lowered device: User can push this button to make lift fall down when meet an emergency.
9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor.
