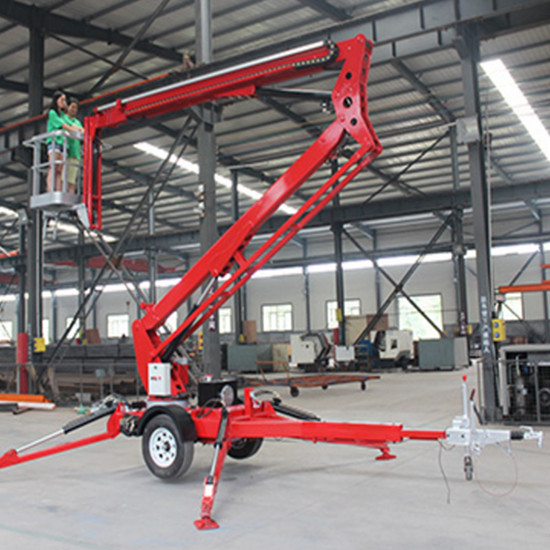

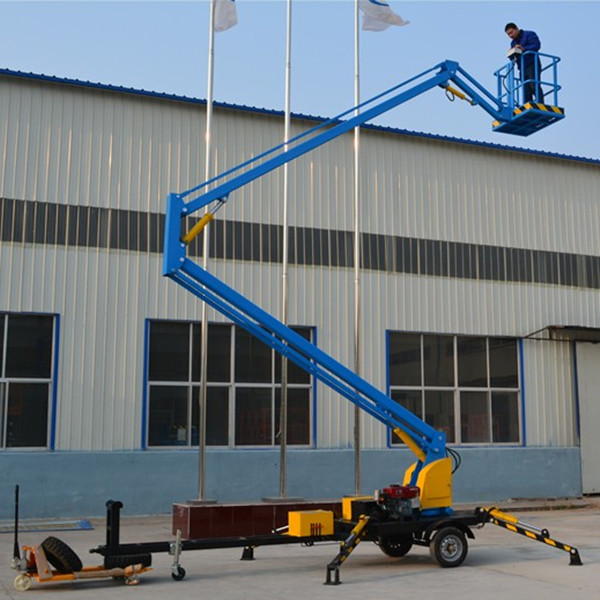

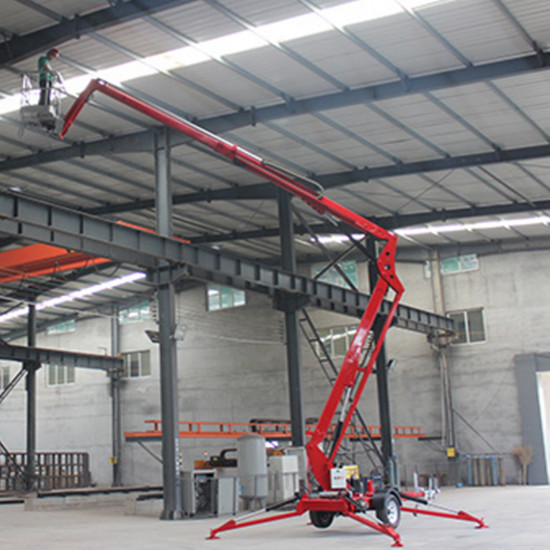

Spider boom lift 16m
A clear and user-friendly English manual is provided with every sale to assist with using and maintaining the lift.
If you need help for any reason, our technical support is available 24-hours a day by email, phone, or other online communication – even on weekends and holidays.
We are absolutely committed to providing our customers with the highest quality customer service.
The lift also comes with a one year warranty for the entire machine, for issues due to no fault of the operator,
and replacement parts will be sent for free during the warranty-covered time period.
Detailed Specifications
Name |
Spider boom lift |
Model |
TAB0.2-16 |
Max platform height |
16m |
Max working height |
18m |
Load capacity |
200kg |
Lateral outreach |
7m |
Jib rotation |
100° |
Turntable rotation |
350° |
Size of platform |
0.9*0.8*1.1m |
Overall stowed length |
5.95m |
Overall stowed width |
1.62m |
Overall stowed height |
2.4m |
Length outrigger footprint standard |
3.95m |
Width outrigger footprint standard |
3.15m |
Total weight |
1950kg |
Travel speed |
35km/h |
Power source(standard) |
Diesel engine |
Optional Power source |
1. Electric 220V AC power |
2. Battery |
